C1051

C1051

Tilt Back Tire Changer with Single Side Helper Arm

0.00
0.00


Tilt Back Tire Changer with Single Side Helper Arm

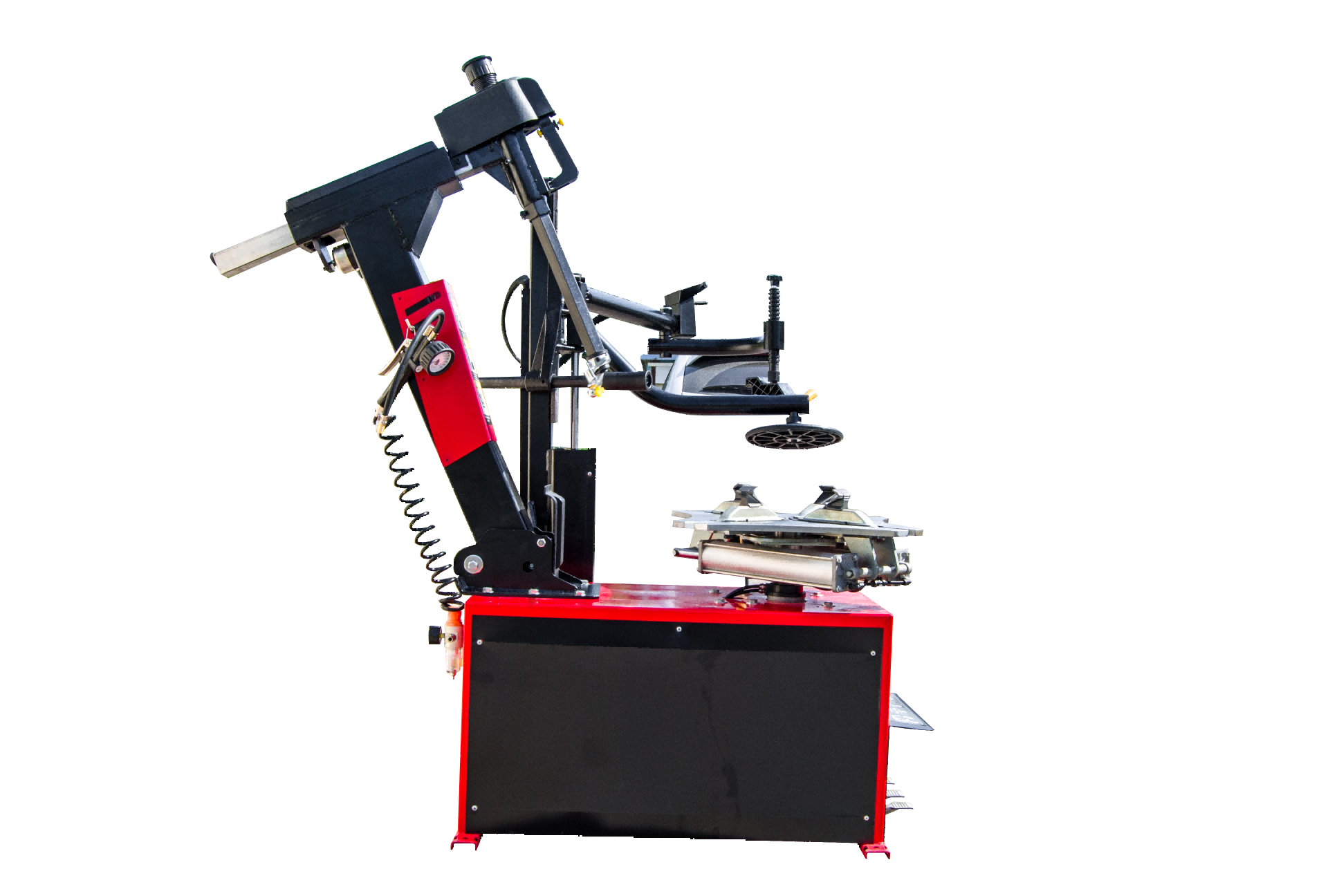

TIRE CHANGER C1051 is a tilt back tower style machine.

The helper arm has one roller which press the bead as well as the bead assist following arm when mounting low-profile, run-flat tires.

The tilt back system is the ultimate in efficiency and speed.

The mount/demount head will always line up with the rim exactly where you initially set it.

●A full right side bead assist arm with roller and following arm to install the toughest tires

●The lifting disc to aid in removal of stiff sidewall tires and to release stuck second bead.

●Machine is powered via strong motor and compressed air 117-145 psi (8-10 bar) to change the toughest tires with ease.

●Foot air valves are Teflon material for long maintenance free life.

●Rim Clamping system with stepping function. Jaws stop when pedal half pressed, and move inwards when pedal is pressed lightly

●Leaverless head (optional)

●Plastic mount/demount head (optional)



Motor power
0.75kw/1.1kw
Voltage110v/220V/380V
Max wheel dia.1120mm
Max wheel width14/360mm
Outside clapming size10"-21"
Inner clapming size12"-24"
Air source pressure 8-10bar
Turntable rotating speed6rpm
Bead breaking force 2500kg
Noise<70dB
