C1060

C1060

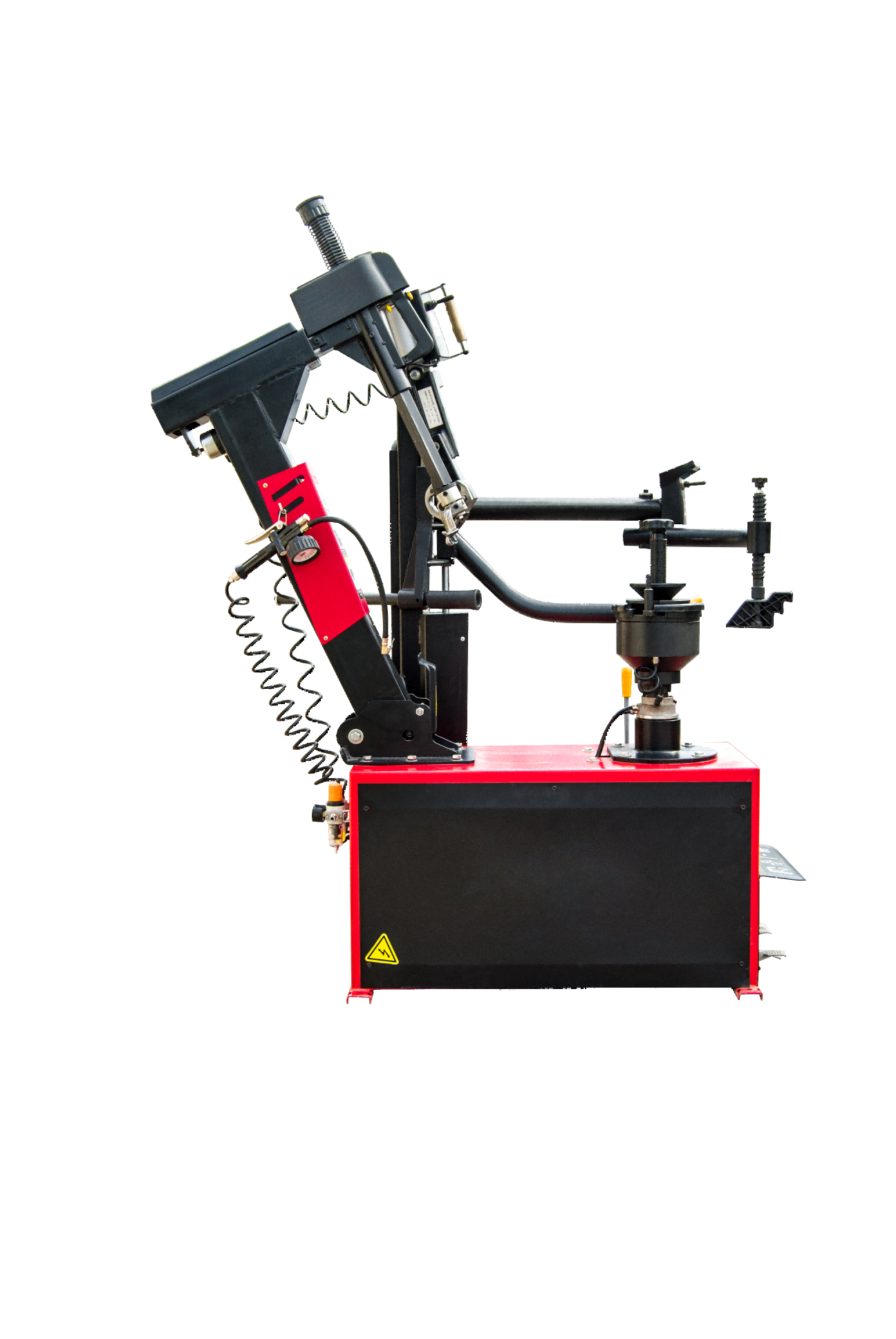

Tilt Back Tire Changer with Single Side Helper Arm

0.00
0.00


Tilt Back Tire Changer with Single Side Helper Arm

Our flagship tire changer machine C1060 is a center post locking mechanism machine, designed for changing high end wheel and tire assembly.

The right assist arms come with one roller and one depress device,which makes changing even run flat tires almost effortless.

Equipped with an automatic leverless mounting/dismounting tool, complete with plastic protections and controlled by a dedicated joystick.

The center-post clamp design has numerous benefits, most important is the drastically reduced risk of wheel damage and less clamping restriction than the turntable design.

●Tilt back column for fast efficient operation

●Leverless head eliminates traditional tire bead lever that can mark the surface due to tough tire applications and operator error.

●Right assist arm with 1 stationary rolle and 1 moving pressing block for wide, low profile and run-flat tires

●Super strong and made to last

●Leverless head with plastic inserts at rim contact points

●Anti-seized bead breaker blade


Motor power
0.75kw/1.1kw
Voltage110v/220V/380V
Max wheel dia.1120mm
Max wheel width14/360mm
Clapming size10"-26"
Air source pressure 8-10bar
Turntable rotating speed6rpm
Bead breaking force 2500kg
Noise<70dB
