C1032-AD

C1032-AD

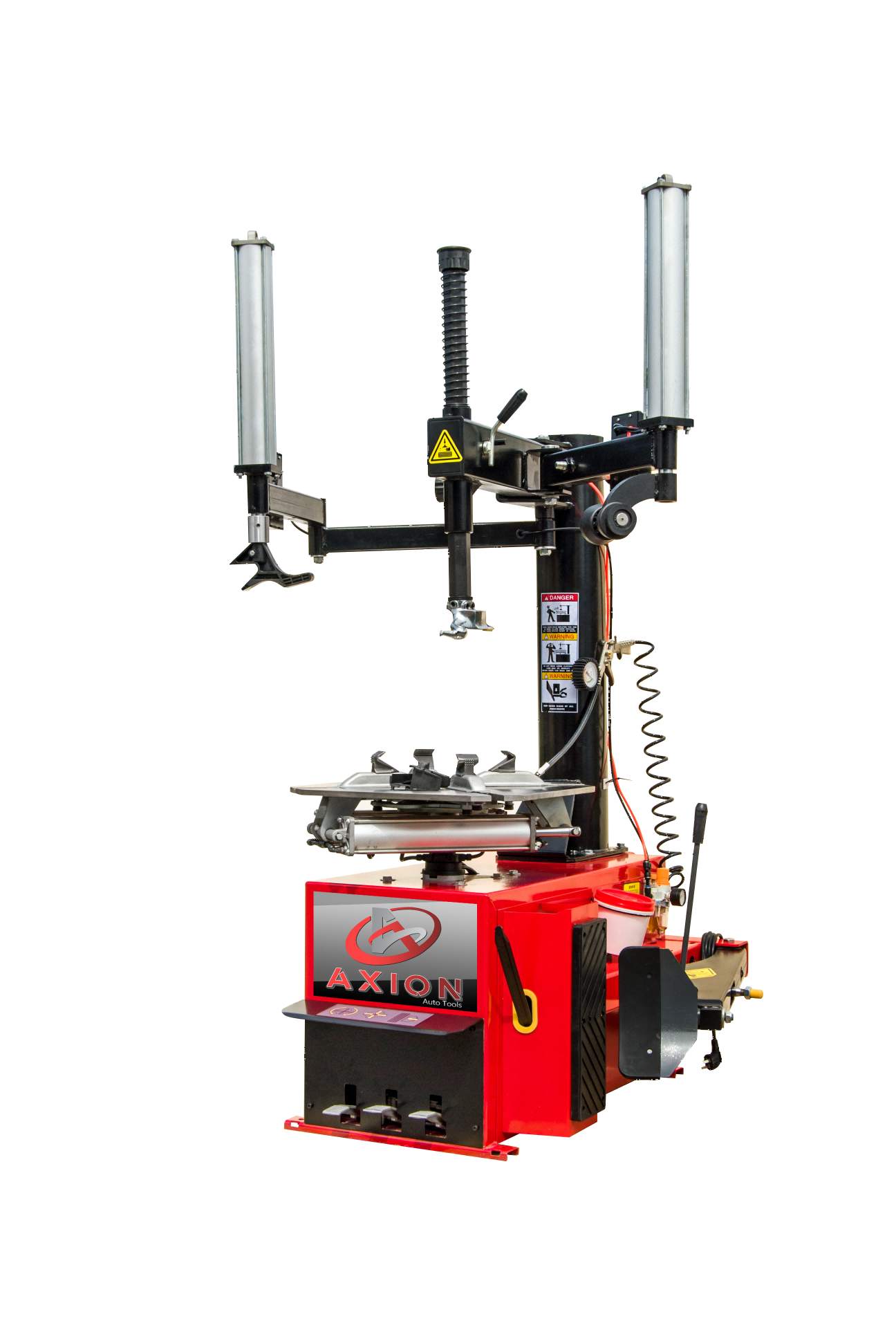

Swing Arm Tire Changer with Double Top Helper Arm

0.00
0.00


Swing Arm Tire Changer with Double Top Helper Arm

This tire changer is the wheel clamp tire changer that has been equipped with the pneumatic double helper arms that include a bead roller and bead lifting/pressing device.

This combination makes the Axion C1032-AD one of the most powerful wheel clamp Tire Changers in the marketplace.


●Tool head locking with automatic setting of appropriate distance from the rim

●The gear box is installed between two steel plates, to avoid flexion during operation.

●The exclusive single speed motor provides needed torque.

●Dual multi-tooth jaw sets permit internal and external clamping.

●Powerful and efficient bead breaking arm.

●Independently controlled helper arms.


Motor power
0.75kw/1.1kw
Voltage110v/220V/380V
Max wheel dia.1120mm
Max wheel width14/360mm
Outside clapming size10"-21"
Inner clapming size12"-24"
Air source pressure 8-10bar
Turntable rotating speed6rpm
Bead breaking force 2500kg
Noise<70dB
