AX-C-2240

AX-C-2240

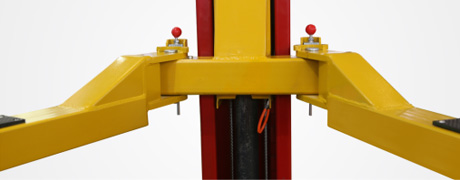

4.0T Manual Clear Floor 2 Post Lift

0.00
0.00


4.0T Manual Clear Floor 2 Post Lift

PRODUCT SPECIFICATIONS
Item
Data
Lifting capacity:
4000kg
Lifting height:
1850mm
Min.height:
100mm
  Pass Width   2560mm
  Column Width   2790mm
  Total Width  3280mm
Lifting time:
50-60s
Oil Pressure Rating:
24MPa
Motor power:
2.2kw- 220V/380V
Weight:
600Kg




Product Description
Product Overview

1.Clear floor design, save space.
2.Adopt double cylinder, 4x4 higher and stronger chain, the wire rope balance system.
3.Both sided manual release.
4.Rubber pad door-opening protection.
5.Rubber support pad adopts double helix adjustment height and height increase joint.
6.Limit switch.
7.The arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicle chassis, three-node
arm optional installation.
