AX-T800

AX-T800

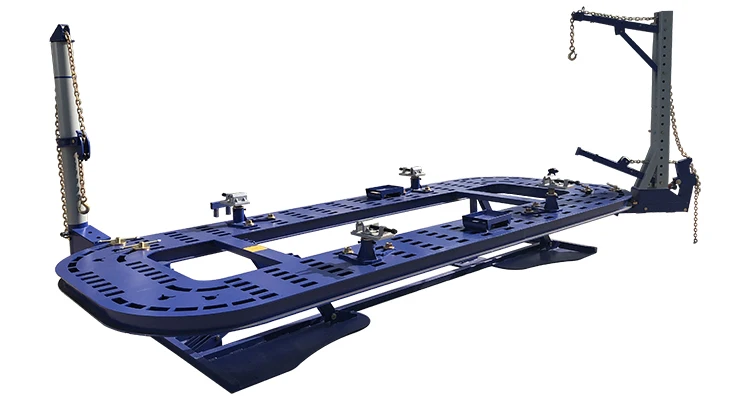

Car Frame Machine /Car Body Straighting Bench

￥ 0.00
0.00


Car Frame Machine /Car Body Straighting Bench

MAIN FEATURES

--Designed to service full-frame or uni-body typed vehicles
--Hydraulic lifting deck operation with 7,700 lb. lifting capacity
--Durable, heavy-duty constructions with powder coat finish
--Universal anchoring system with adjustable height pinch weld/clamp assemblies
--Clear Floor, 360 degree pulling capability
--Twin 10-ton round pull tower with telescoping tower heads
--Adjustable tower collars
--Quick disconnect hydraulic fitting & hose connection
--Drive-on ramps
SPECIFICATIONS FOR T-800 AUTO BODY FRAME MACHINE
Length of the Platform
220”/5600mm
220"/5600mm
Width of the Platform
86.6"/2200mm
86.6"/2200mm
Height of the Platform
13.3"/340mm
25.6"/650mm
Air Supply Required
100-120PSI(0.6-0.8MPa)
100-120PSI(0.6-0.8MPa)
Hydraulic Power
10,000PSI(70MPa)
10,000PSI(70MPa)
Pulling Capacity of Tower
10-Ton(100KN)
10-Ton(100KN)
360°Range of Tower
360°
360°
Max Loading Capacity
7700lbs/3500kgs
7700lbs/3500kgs
Deck Platform Type
Whole Manganese Plate Type

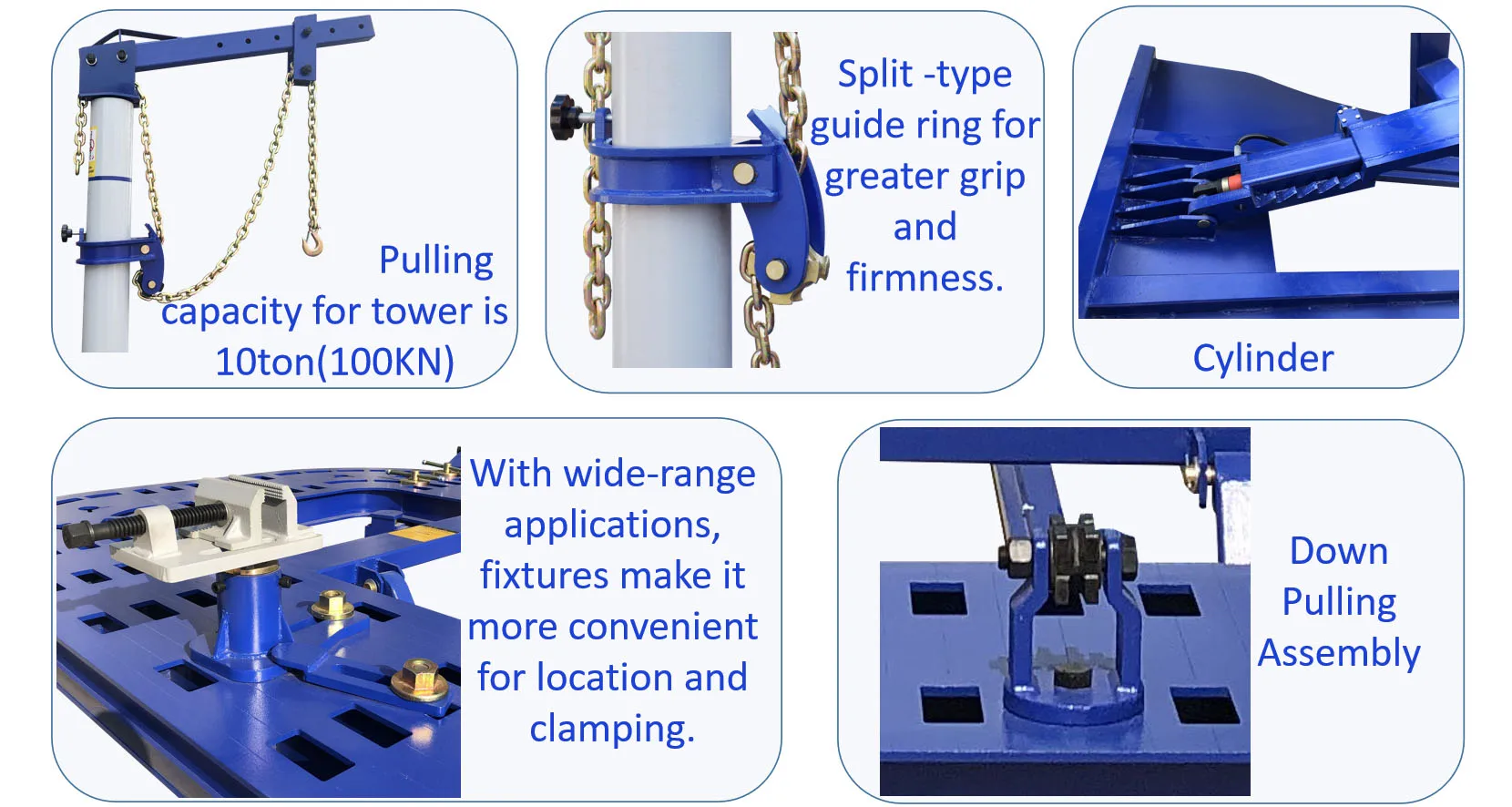

Details Images
