AX-J300

AX-J300

Car Frame Machine /Car Body Straighting Bench

￥ 0.00
0.00


Car Frame Machine /Car Body Straighting Bench

SPECIFICATIONS FOR J-300 AUTO BODY FRAME MACHINE
Length of the Platform
204”/5200mm
220"/5600mm
Width of the Platform
86.6"/2200mm
86.6"/2200mm
Height of the Platform
22"/560mm
22"/560mm
Air Supply Required
100-120PSI(0.6-0.8MPa)
100-120PSI(0.6-0.8MPa)
Hydraulic Power
10,000PSI(70MPa)
10,000PSI(70MPa)
Pulling Capacity of Tower
10-Ton(100KN)
10-Ton(100KN)
360°Range of Tower
360°
360°
Max Loading Capacity
7700lbs/3500kgs
7700lbs/3500kgs
Deck Platform Type
Whole Plate Type

MAIN FEATURES

--Designed to service full-frame or uni-body typed vehicles
--Hydraulic tilt deck operation with 7,700 lb. lifting capacity
--Durable, heavy-duty constructions with powder coat finish
--Universal anchoring system with adjustable height pinch weld/clamp assemblies
--Clear Floor, 360 degree pulling capability
--Multiple tie-down 'precision cut' hole locations
--Twin 10-ton round pull tower with telescoping tower heads
--Adjustable tower collars
--Quick disconnect hydraulic fitting & hose connection
--Drive-on ramps

Detailed Images

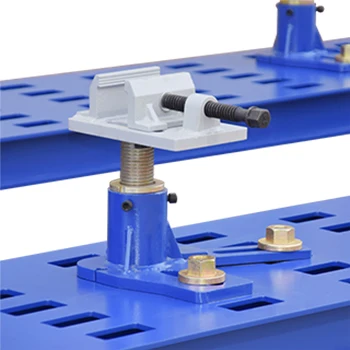

Universal Clamp

Universal clamp suitable for all kinds of vehicle maintenance.

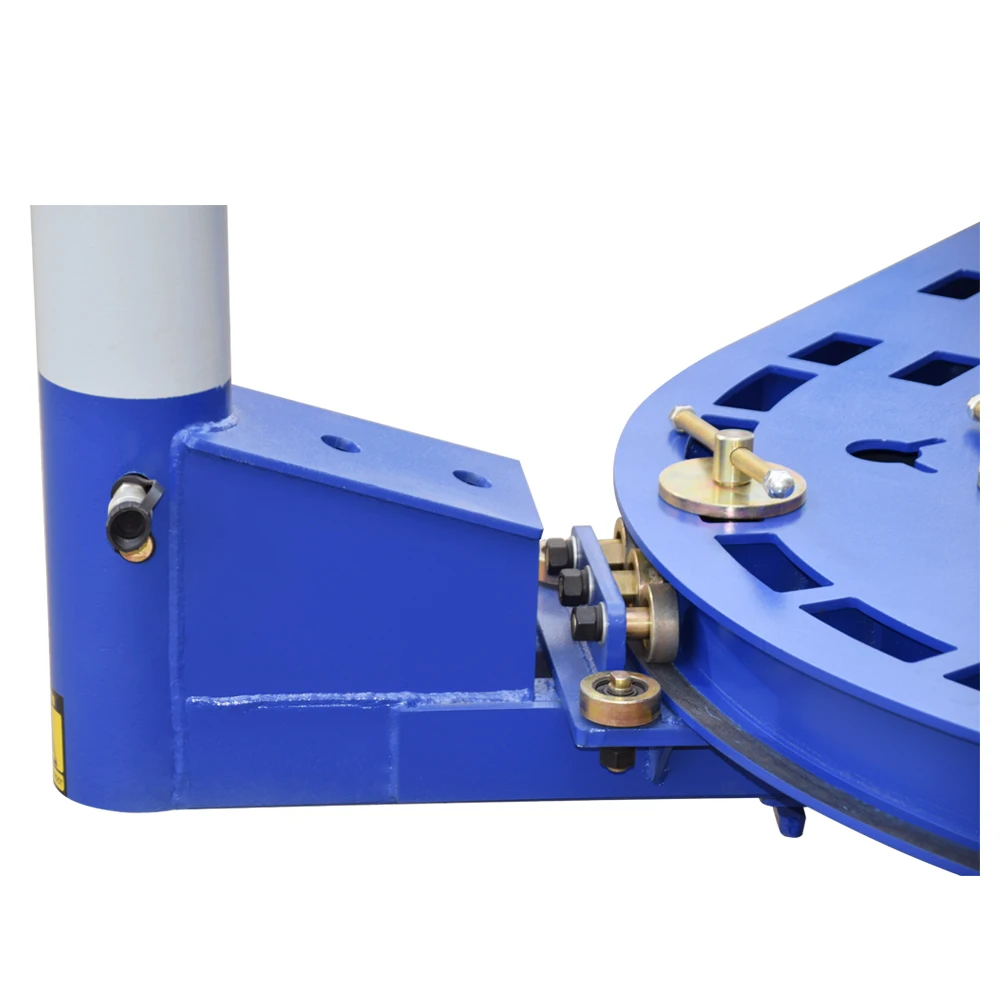

Basement of tower

Seamless welding,four thick reinforcement plates.
Three big size pulleys in the middle,one on each side.

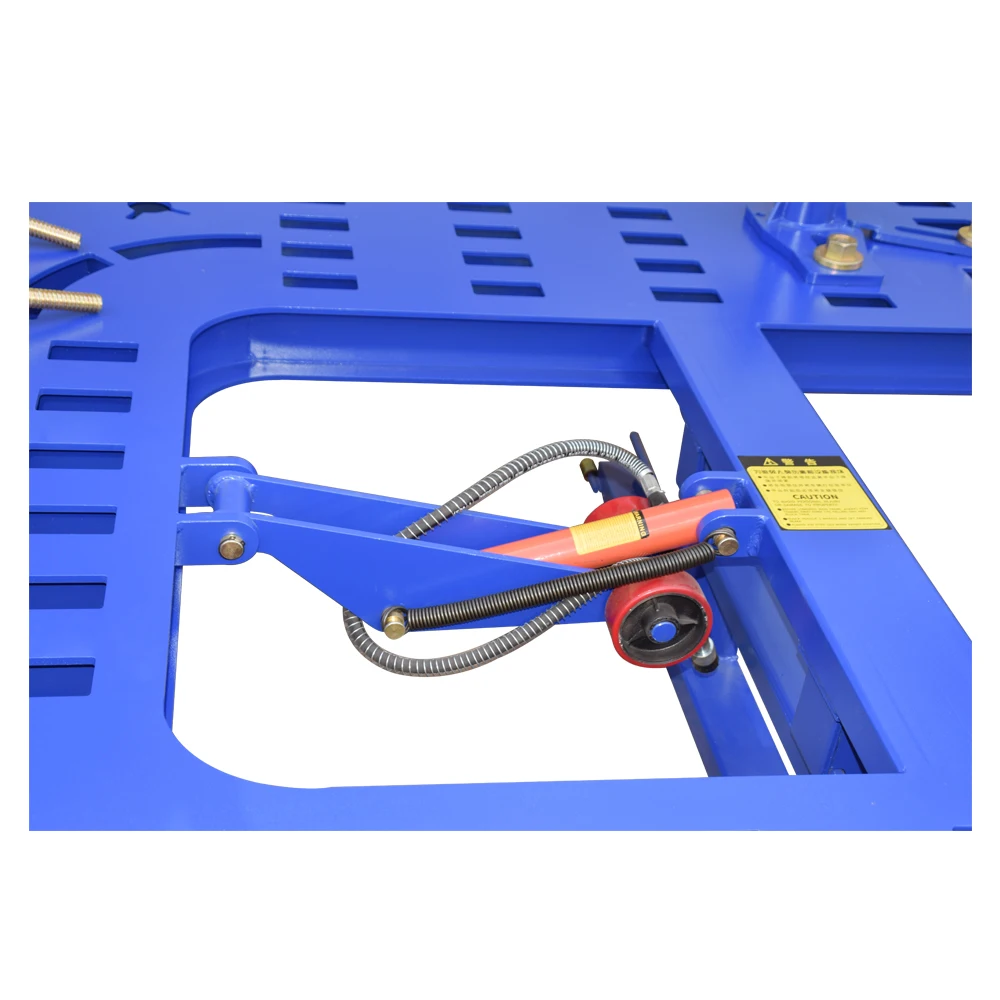

Pump and Arc design corner

Max. lifting capacity of pump is 7700lbs/3500kgs.
Arc design corner makes sliding smoother.
